Airforce 150mm Wall Ducting Heat Reduction System Including Thermobox- AFC4043060

Name: Airforce 150mm Wall Ducting Heat Reduction System Including Thermobox- AFC4043060
Brand: Airforce
SKU: AFC4043060
Price: 199.0 GBP
Availability: InStock

£199.00

Secure online shopping

Frequently Asked Questions

1) Why choose Airforce?

Because we firmly believe that the design of each product must aim at the perfect synthesis of aesthetics and functionality, of technology and efficiency.

Thanks to its highly specialized people, Airforce can guarantee a great deal of flexibility and technical support to its customers.

2) How long does the warranty last?

Unless otherwise indicated in the product documentation, our standard warranty lasts 2 years.

3) Which components are covered by the warranty?

All critical components such as controls, motor and lights are covered by the warranty.

All components such as glasses, filters, bulbs, chimneys, removable parts and/or aesthetic defects reported after installation are excluded from the warranty (for any further information please refer to the warranty terms included in the product documentation).

4) Which is the correct way to use the hood?

The hood should always be in use when you are cooking.

To obtain the best performances and efficiency, and be sure to filter all the air, we suggest you to turn on the hood 5/10 minutes before start cooking, and switch off 10/15 minutes after you stop cooking.

5) Which products should I use to clean the hood/hob?

For cleaning use a damp cloth with denatured alcohol or neutral liquid detergents.

Do not use abrasive and/or aggressive products (for any further information please refer to the user manual).

6) How long does the grease filter last? And how can I clean it?

All our grease filters are washable. Cleaning the grease filters is more or less necessary depending on the type of cooking and how often you use the hood. However the grease filter should be cleaned at least once a month, with non-aggressive detergents, either manually or in a dishwasher at low temperatures and short-cycle. Most of our products with electronic control are equipped with a grease filter cleaning warning.

7) Which is the correct distance between the hood and the hob?

The hood must have a minimum distance of 65 cm from the hob, unless otherwise indicated by the manufacturer. If the hob installation instructions specify a greater distance, you must take this into account.

Always read the user manuals before installation to check the correct distance between the products.

8) When should I contact technical support?

Whenever there is a malfunction of critical components (such as power cord, motor, controls) or heavy aesthetic components are damaged (such as chimneys, glasses, etc.), they must be repaired or replaced immediately.

Every inspection, repair, or replacement must be done only by qualified personnel or official technical service, regardless of whether the product is still covered by warranty or not, in order to prevent any risk.

Any intervention by staff other than the official technical service will automatically invalidate any residual warranty on the product.

9) What is Integra System

The Integra System hoods can be controlled by any of the Integra hobs - So there is no need to reach up to the hood, as it can be fully controlled on the hob.

The Details

E-Jal 150 wall conduct incl. THERMOBOX, white, stainless steel

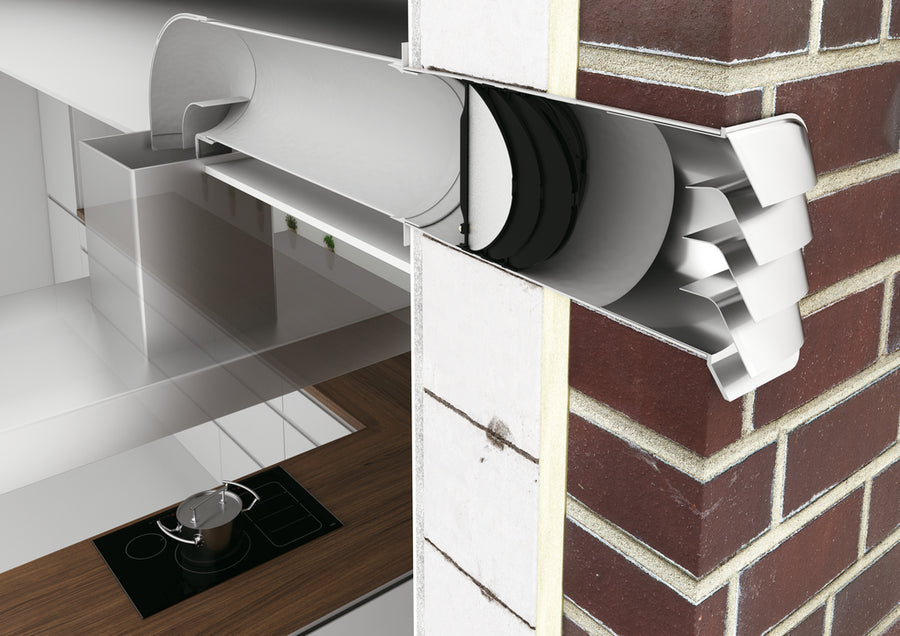

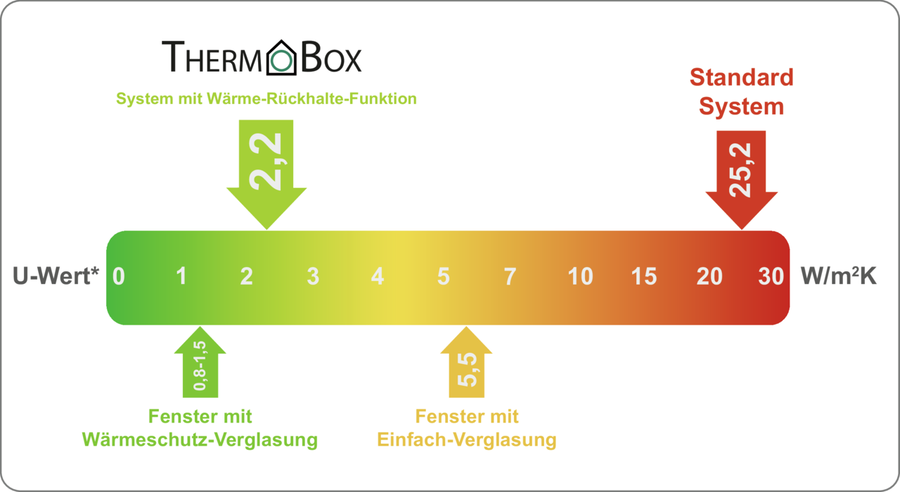

The COMPAIR^® flow E-Jal 150 wall box with integrated THERMOBOX significantly improves the room climate in conjunction with an extractor bonnet. It reliably guides the exhaust air out via the air duct. At the same time, the system prevents heat loss in the room and the penetration of cold outside air. Thus, the wall box is equipped with a telescopic tube containing the THERMOBOX, a built-in heat retention system. In combination with the E-Jal stainless steel external louvre, this results in high energy efficiency with up to 20 times less heat loss compared to standard backflow flaps. Neither vibrations nor rattling noises are generated. The THERMOBOX, which opens at 65 Pa, features Blower Door certification. The wall box including THERMOBOX thus makes an effective contribution to energy saving. The wall box is connected to a round pipe via a hose/pipe connection piece with a diameter of 150 mm. The installation depth of the wall box varies from 350 to 500 mm, whereby the pipe can be shortened to 255 mm - so the duct is suitable for different wall thicknesses. A wall opening with a diameter of approx. 155 mm is required for installation.

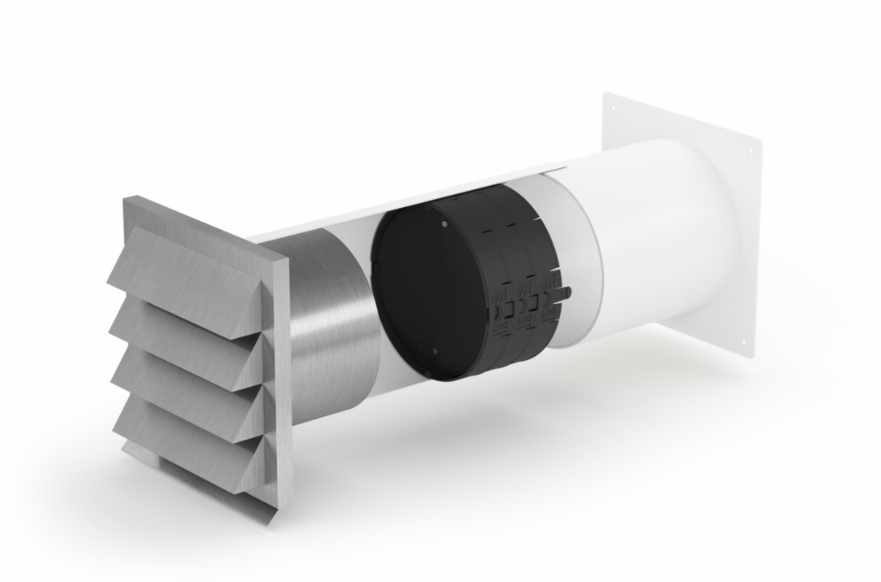

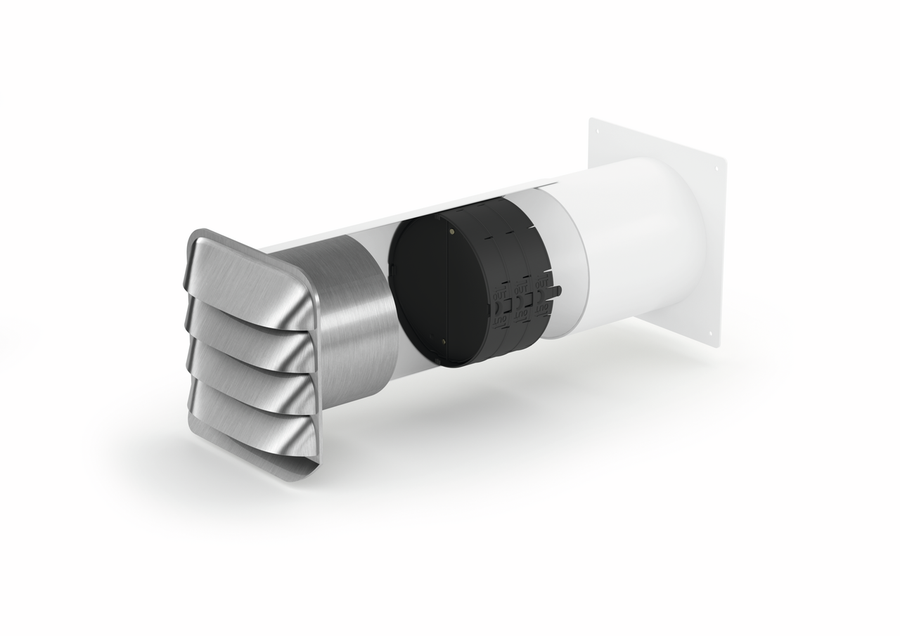

Wall conduct with telescopic pipe, incl. built-in heat retention system THERMOBOX and stainless steel external E-Jal.

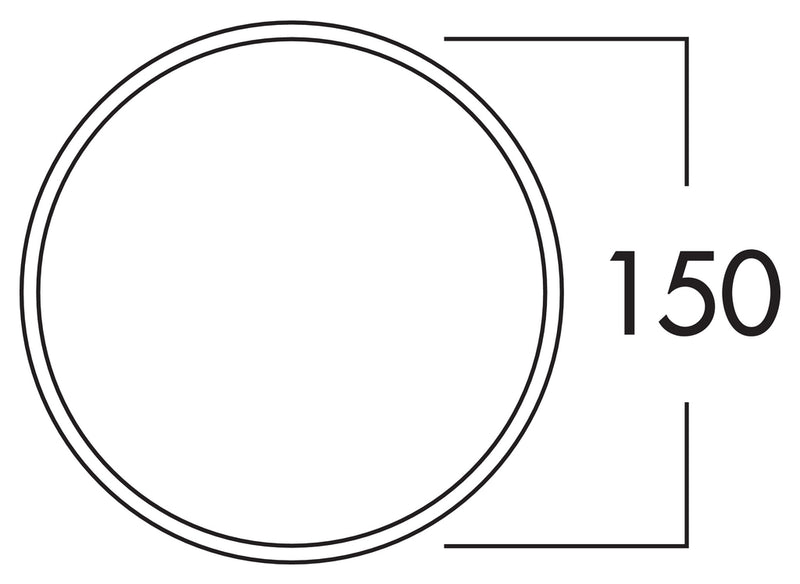

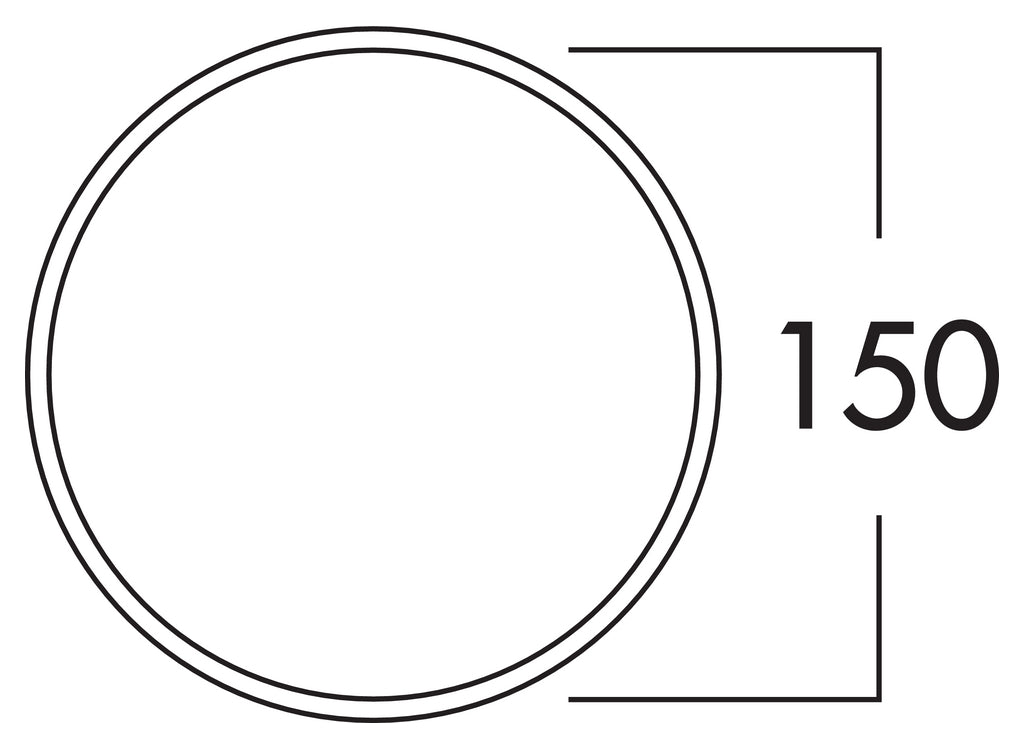

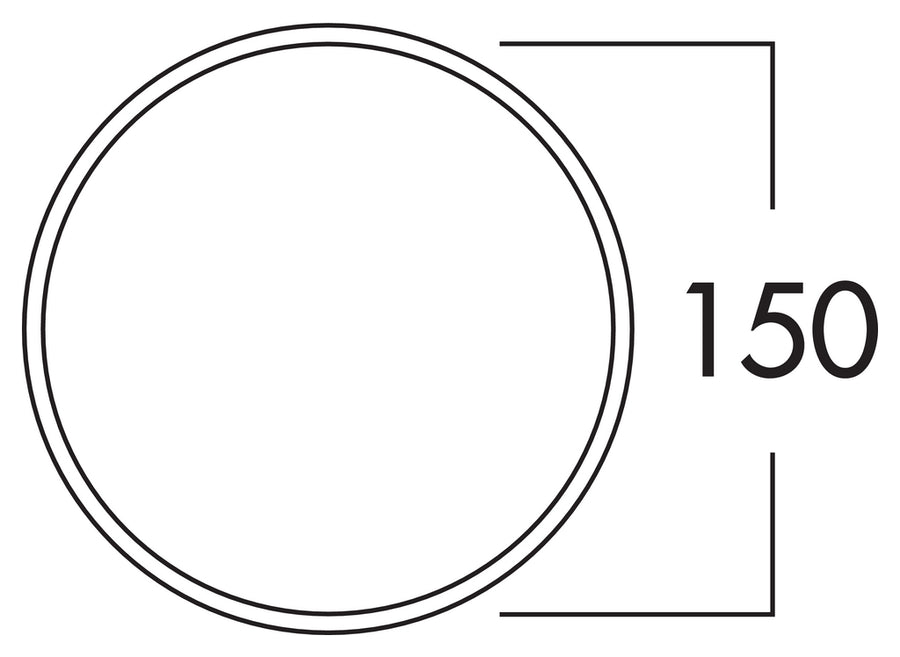

— hose/pipe connection Ø 150 mm
— connection depth 24 mm
— installation depth 350–500 mm, can be shortened to 255 mm
— wall penetration Ø ca. 155 mm
— Blower-Door certified (required opening pressure >65 Pa)

Article type: Wall sleeve

Certification: stainless

Colour: stainless-steel coloured

Diameter wall opening: 155 mm

Installation depth: 350–500 mm

Outer diameter: 150 mm

Output drive: round

Properties: can be shortened

Shape: angular

Support depth: 24 mm

System dimension: 150

Material: stainless steel
