Airforce Innova Visio Plus 90cm Rear Venting Induction hob with Vertical Rear Motor- Externally Ducted-5 Year Warranty

Name: Airforce Innova Visio Plus 90cm Rear Venting Induction hob with Vertical Rear Motor- Externally Ducted-5 Year Warranty
Brand: Airforce
SKU: CCINNV9001
Price: 2274.18 GBP
Availability: InStock

£2,274.18

Secure online shopping

Frequently Asked Questions

1) Why choose Airforce?

Because we firmly believe that the design of each product must aim at the perfect synthesis of aesthetics and functionality, of technology and efficiency.

Thanks to its highly specialized people, Airforce can guarantee a great deal of flexibility and technical support to its customers.

2) How long does the warranty last?

Unless otherwise indicated in the product documentation, our standard warranty lasts 2 years.

3) Which components are covered by the warranty?

All critical components such as controls, motor and lights are covered by the warranty.

All components such as glasses, filters, bulbs, chimneys, removable parts and/or aesthetic defects reported after installation are excluded from the warranty (for any further information please refer to the warranty terms included in the product documentation).

4) Which is the correct way to use the hood?

The hood should always be in use when you are cooking.

To obtain the best performances and efficiency, and be sure to filter all the air, we suggest you to turn on the hood 5/10 minutes before start cooking, and switch off 10/15 minutes after you stop cooking.

5) Which products should I use to clean the hood/hob?

For cleaning use a damp cloth with denatured alcohol or neutral liquid detergents.

Do not use abrasive and/or aggressive products (for any further information please refer to the user manual).

6) How long does the grease filter last? And how can I clean it?

All our grease filters are washable. Cleaning the grease filters is more or less necessary depending on the type of cooking and how often you use the hood. However the grease filter should be cleaned at least once a month, with non-aggressive detergents, either manually or in a dishwasher at low temperatures and short-cycle. Most of our products with electronic control are equipped with a grease filter cleaning warning.

7) Which is the correct distance between the hood and the hob?

The hood must have a minimum distance of 65 cm from the hob, unless otherwise indicated by the manufacturer. If the hob installation instructions specify a greater distance, you must take this into account.

Always read the user manuals before installation to check the correct distance between the products.

8) When should I contact technical support?

Whenever there is a malfunction of critical components (such as power cord, motor, controls) or heavy aesthetic components are damaged (such as chimneys, glasses, etc.), they must be repaired or replaced immediately.

Every inspection, repair, or replacement must be done only by qualified personnel or official technical service, regardless of whether the product is still covered by warranty or not, in order to prevent any risk.

Any intervention by staff other than the official technical service will automatically invalidate any residual warranty on the product.

9) What is Integra System

The Integra System hoods can be controlled by any of the Integra hobs - So there is no need to reach up to the hood, as it can be fully controlled on the hob.

The Details

Airforce Innova Visio Plus 90cm Rear Venting Induction hob with Vertical Rear Motor- Externally Ducted 5 Year Warranty.

VISIO PLUS

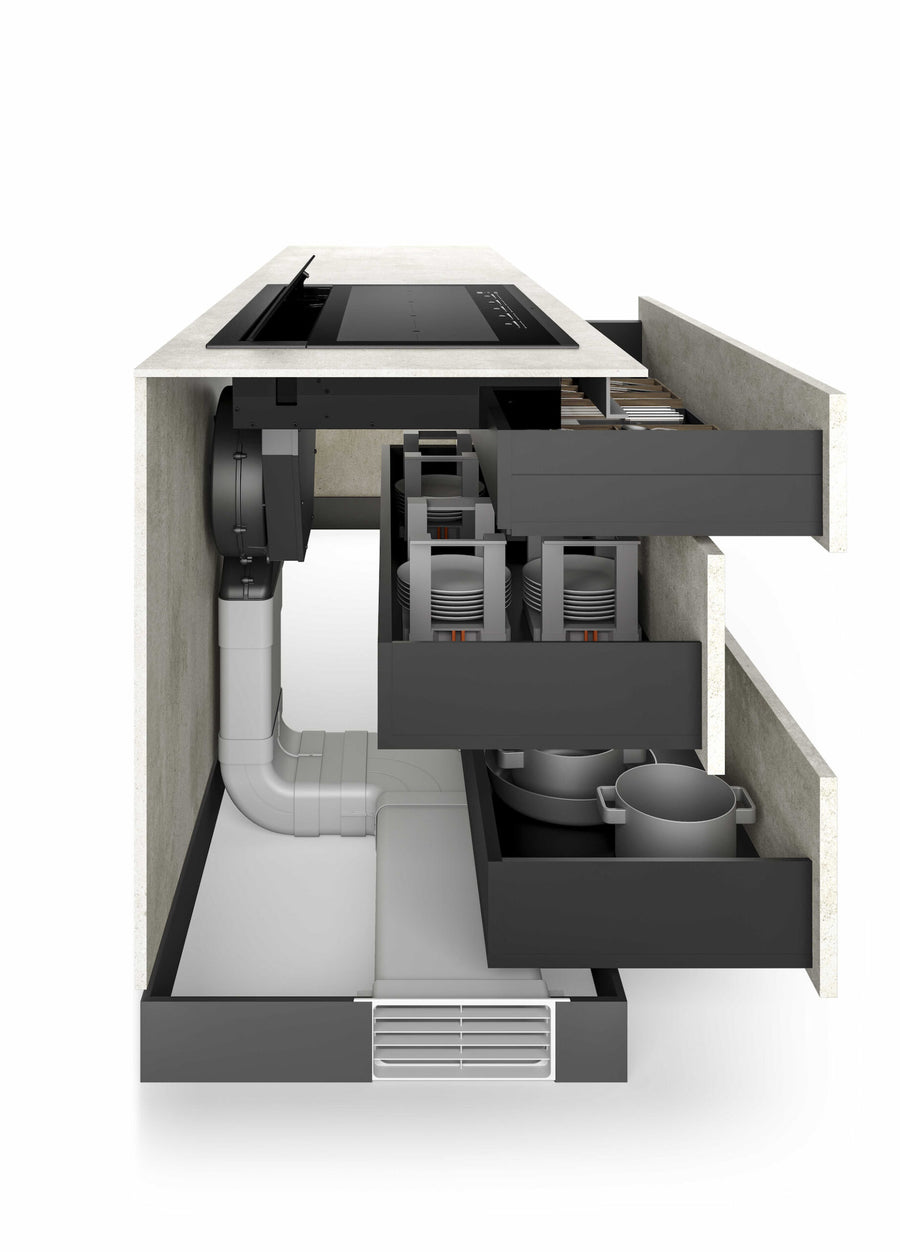

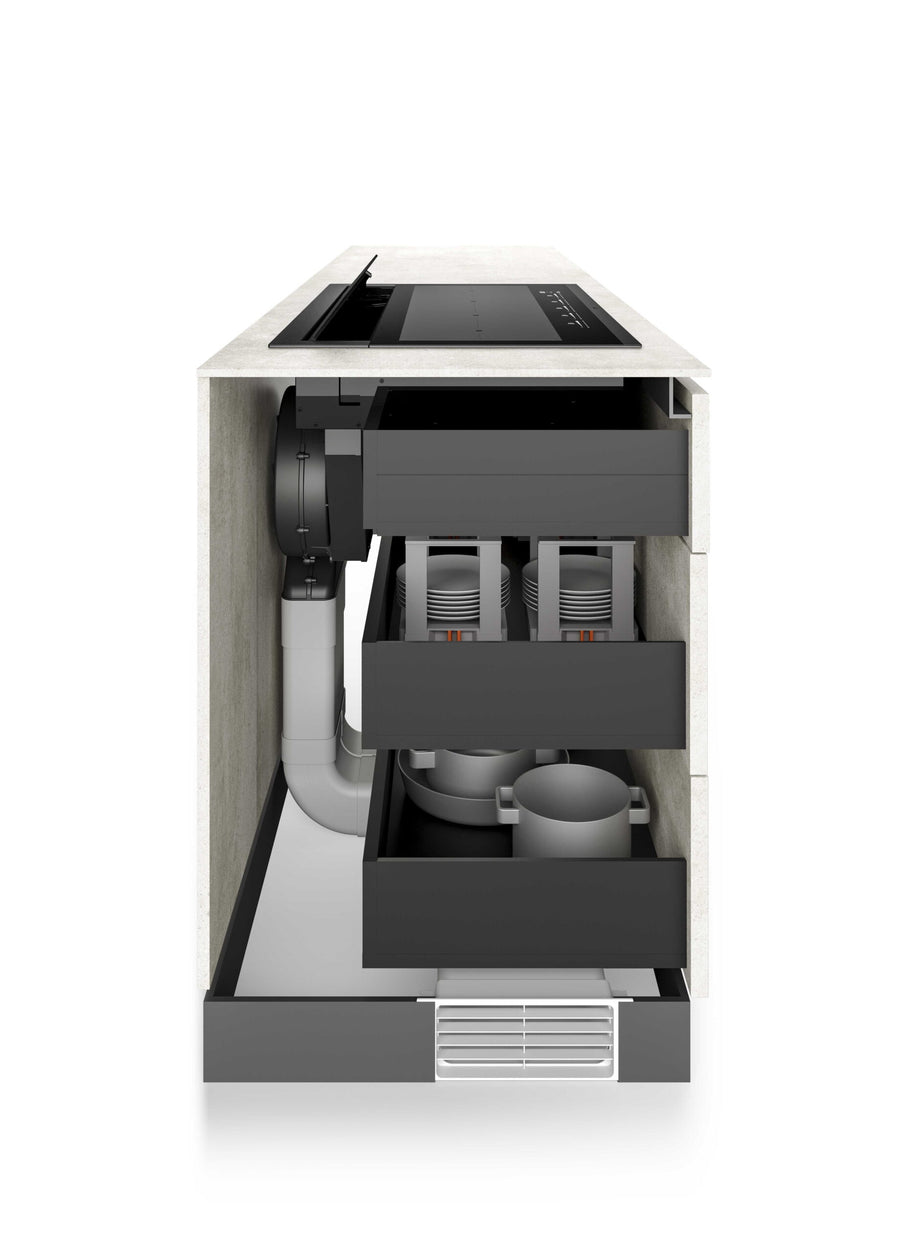

A pioneering product, enfant prodige of the range, thanks to the vertical positioning of the motor at the back, Visio makes the first drawer of the base that houses it fully functional. A secret ‘wish’ that coming true.

Innovation pushes the boundary of possibility: ease and versatility of the motor installation make this hob usable not only on standard bases measuring 60 cm, but also 70 cm and more. Functional and stylish is the scratch-resistant matt screen-printing on the hob, which delimits the hot zone. Tactile and visual pleasure.

Aspiration

Iec air flow: 665 m3/h

Noise level: 42/67/71 dB(A)

Cooking

Cooking zones: 4 x 190x210 mm/2,1 kW (Booster 3 kW)

Max power: 7,4 kW

Power limiter Power Management min. 1,4 kW max. 7,4 kW

info

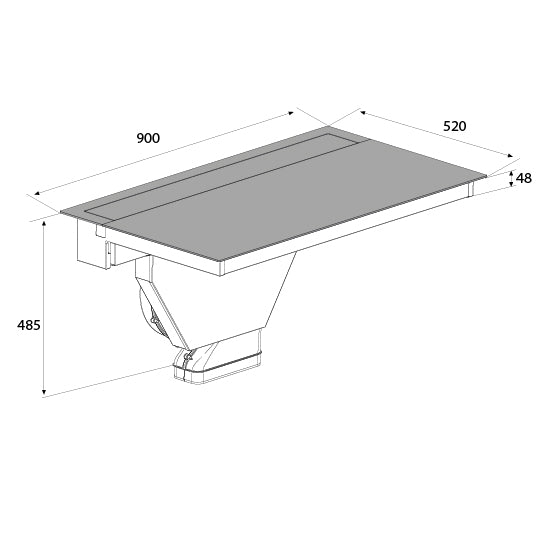

DIMENSION: 90x52 cm

Control: COMANDO TOUCH SLIDER, 4 ZONE DI COTTURA + ASPIRAZIONE, 9P+1

BOOSTER

Slider touch control, 4 cooking zones + aspiration, 9P+1 intensive/booster

Cut out: 86x48,5 cm

Air outlet dimensions: 222x89 mm

Features

Vertical rear motor which allows the first functional drawer to be installed under the hob

aluminum aspiration flap with automatically adjustable opening

Petra version: full matte finish

Black disappearing touch control

Zero-Moisture System

Accessories-All are optional do not come in with hob

KT100002 KIT: Extracting/Recirculating fitting kit - plinth H10/15 cm

Features

Rear-mounted vertical motor
which allows the first functional drawer to be installed under the hob
Anodized aluminum aspiration flap with automatically adjustable opening
Matte-Black Finish
Full-Black disappearing touch control
Zero-Moisture System

Technical

Cooking zones: 4 x 190×210 mm / 2,1 kW (Booster 3 kW)
Max power: 7,4 KW
Power limiter: Power Management min.1,4 kW max.7,4 kW

IEC air flow: 665 m³/h
Noise level: 42/67/71 dB(A)
Absorption: 165 W
