CDA CCA52WH Canopy extractor

Name: CDA CCA52WH Canopy extractor
Brand: CDA
SKU: CCA52WH
Price: 74.0 GBP
Availability: InStock

£74.00

Secure online shopping

Frequently Asked Questions

1) Why choose Airforce?

Because we firmly believe that the design of each product must aim at the perfect synthesis of aesthetics and functionality, of technology and efficiency.

Thanks to its highly specialized people, Airforce can guarantee a great deal of flexibility and technical support to its customers.

2) How long does the warranty last?

Unless otherwise indicated in the product documentation, our standard warranty lasts 2 years.

3) Which components are covered by the warranty?

All critical components such as controls, motor and lights are covered by the warranty.

All components such as glasses, filters, bulbs, chimneys, removable parts and/or aesthetic defects reported after installation are excluded from the warranty (for any further information please refer to the warranty terms included in the product documentation).

4) Which is the correct way to use the hood?

The hood should always be in use when you are cooking.

To obtain the best performances and efficiency, and be sure to filter all the air, we suggest you to turn on the hood 5/10 minutes before start cooking, and switch off 10/15 minutes after you stop cooking.

5) Which products should I use to clean the hood/hob?

For cleaning use a damp cloth with denatured alcohol or neutral liquid detergents.

Do not use abrasive and/or aggressive products (for any further information please refer to the user manual).

6) How long does the grease filter last? And how can I clean it?

All our grease filters are washable. Cleaning the grease filters is more or less necessary depending on the type of cooking and how often you use the hood. However the grease filter should be cleaned at least once a month, with non-aggressive detergents, either manually or in a dishwasher at low temperatures and short-cycle. Most of our products with electronic control are equipped with a grease filter cleaning warning.

7) Which is the correct distance between the hood and the hob?

The hood must have a minimum distance of 65 cm from the hob, unless otherwise indicated by the manufacturer. If the hob installation instructions specify a greater distance, you must take this into account.

Always read the user manuals before installation to check the correct distance between the products.

8) When should I contact technical support?

Whenever there is a malfunction of critical components (such as power cord, motor, controls) or heavy aesthetic components are damaged (such as chimneys, glasses, etc.), they must be repaired or replaced immediately.

Every inspection, repair, or replacement must be done only by qualified personnel or official technical service, regardless of whether the product is still covered by warranty or not, in order to prevent any risk.

Any intervention by staff other than the official technical service will automatically invalidate any residual warranty on the product.

9) What is Integra System

The Integra System hoods can be controlled by any of the Integra hobs - So there is no need to reach up to the hood, as it can be fully controlled on the hob.

The Details

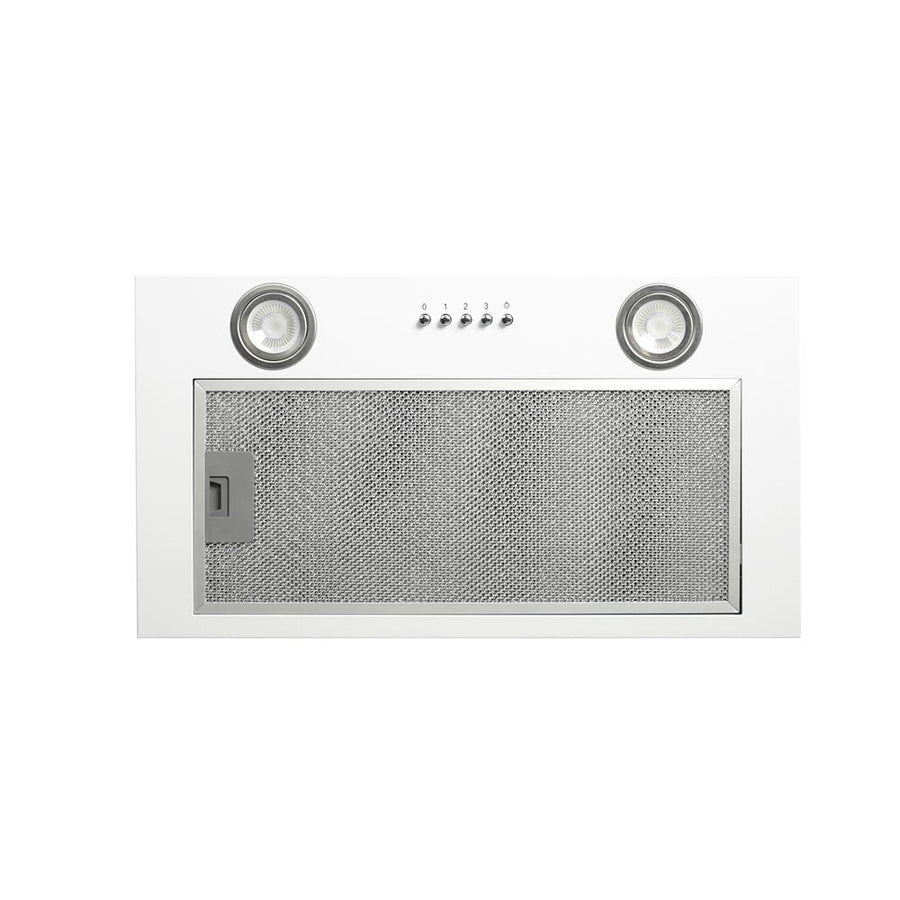

The CCA52WH is a 50cm canopy extractor with push button controls. It can be ducted out or fitted with re-circulating charcoal filters. It has 3 speeds and LED lights for flexibility and ease of use whilst cooking.

Features

Ducted/re-circulating installation
Push button control
3 speeds
Ducted installation
Speeds: 3
Re-circulating installation
Dishwashable grease filter

Dimensions

Depth: 282
Width: 518
Height: 175

Technical Specification

Rated electrical power: 44 W
Power supply: 3 A
Required height over CDA gas hobs: 650 mm (min)
Required height over electric hobs: 600 mm (min)
Mains lead length: 1 m
Outlet diameter: 120 mm

Extraction Rates And Noise

Noise level at third speed: 63 dBA
Extraction rate at third speed: 206 m³/hr
Noise level at second speed: 59 dBA
Noise level at first speed: 56 dBA
Extraction rate at second speed: 165 m³/hr
Extraction rate at first speed: 141.6 m³/hr

Energy

Energy rating: B

Lighting

Number of lights: 2
Type of light: LED
Wattage of lights: 2W

Filters

Aluminium grease filter
Number of grease filters: 1
Number of charcoal filters (optional): 1
Charcoal filter code: CHA15
Ducting kit: AED510/560

Misc Information

WEEE Category: 1
