Description

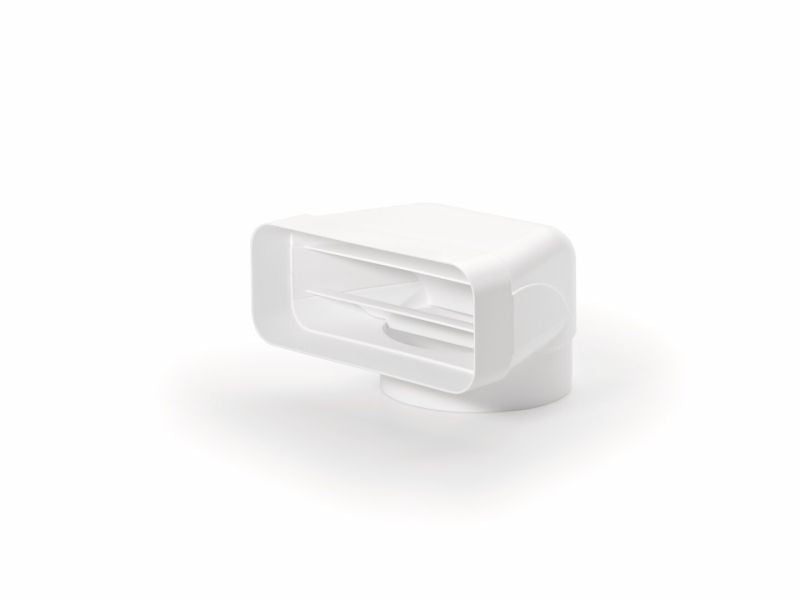

150 90° diverter is designed for direct connection of the bonnet to the extractor system. It is compatible with the flat ducts as well as with the round ducts of the series with a diameter of 150 mm. Thanks to the integrated air baffle, the vapour flows in the duct are smoothed and discharged with the lowest possible pressure. The moulded part with a socket moulded on one side is manufactured in high quality and is characterised by its durability.
Article type: Connecting element
Colour: white
Connection diameter:150 mm
Mounting/Fixing: Plug-in system for subsequent gluing
Output drive: round
Shape: angular
System dimension: 150
Material: polypropylene

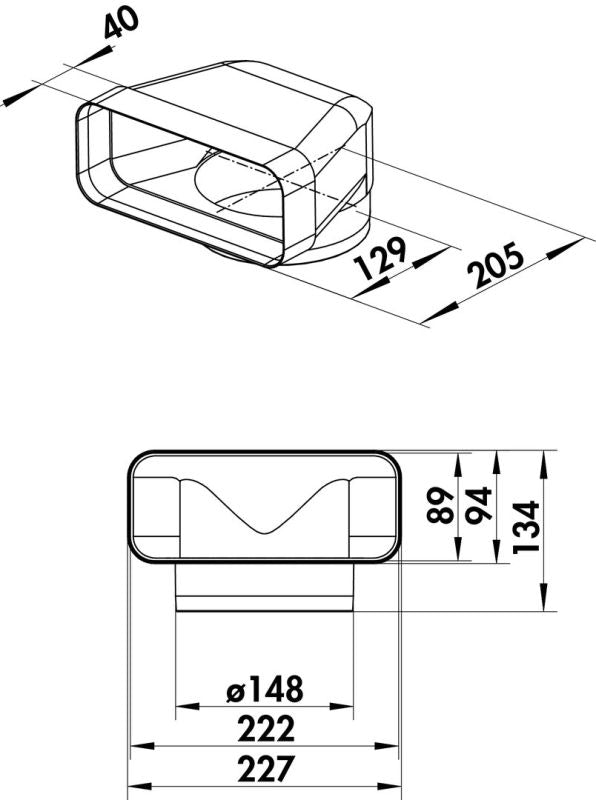

Depth: 205 mm
Height: 134 mm
Width: 227 mm
