Description

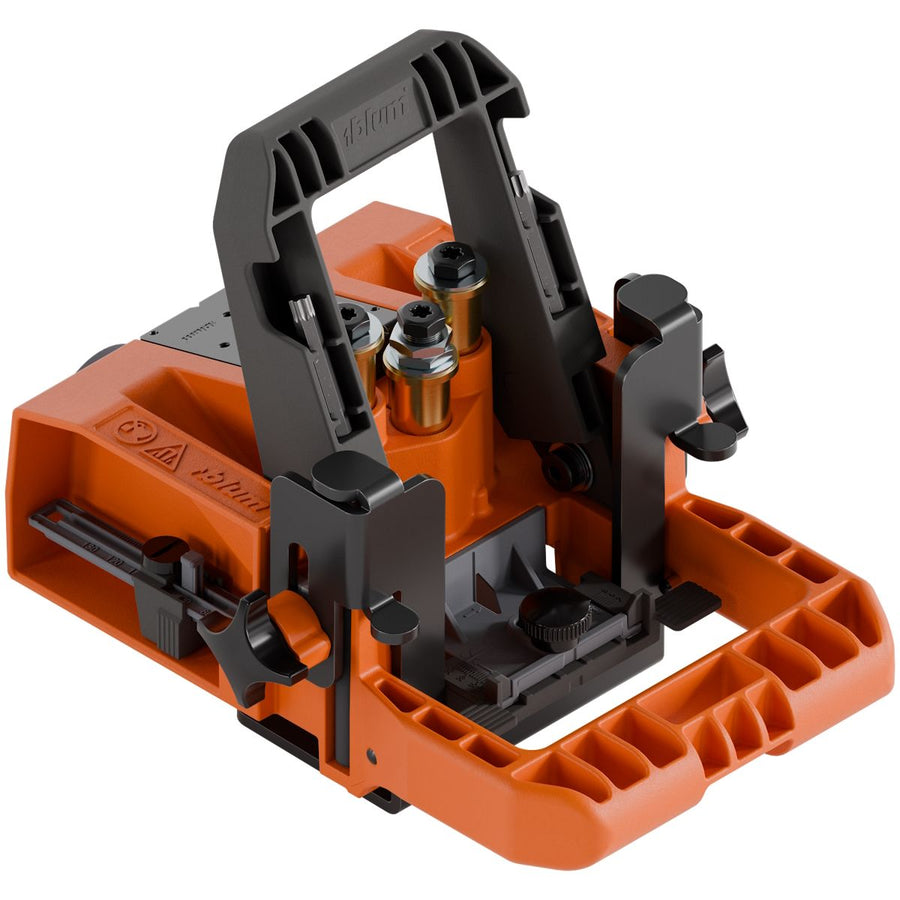

ECODRILL for Hinges & Mounting Plates
The new & improved fitters favourite.
Overview

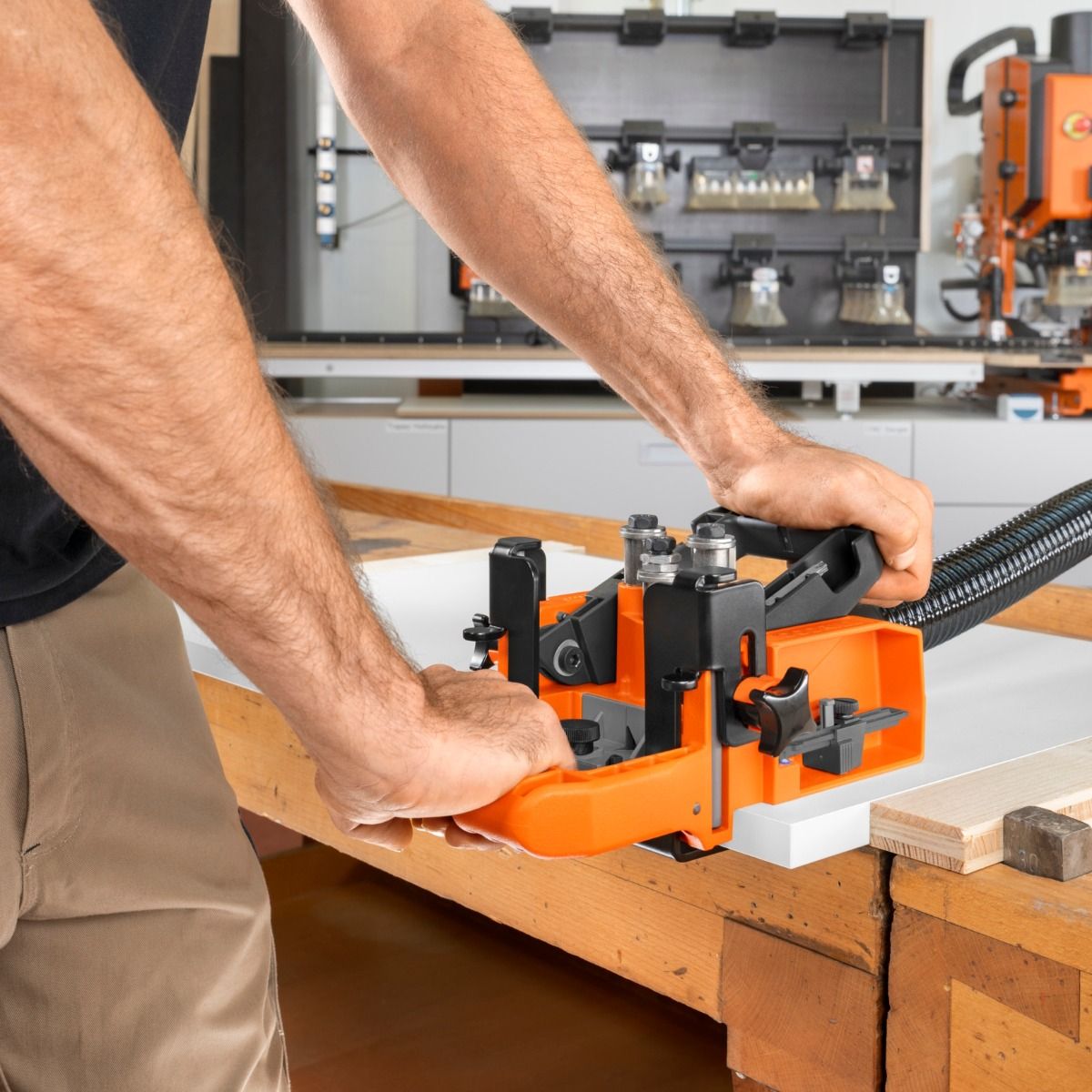

Handheld tool for accurate drilling of Blum hinges & mounting plates.
The Benefits

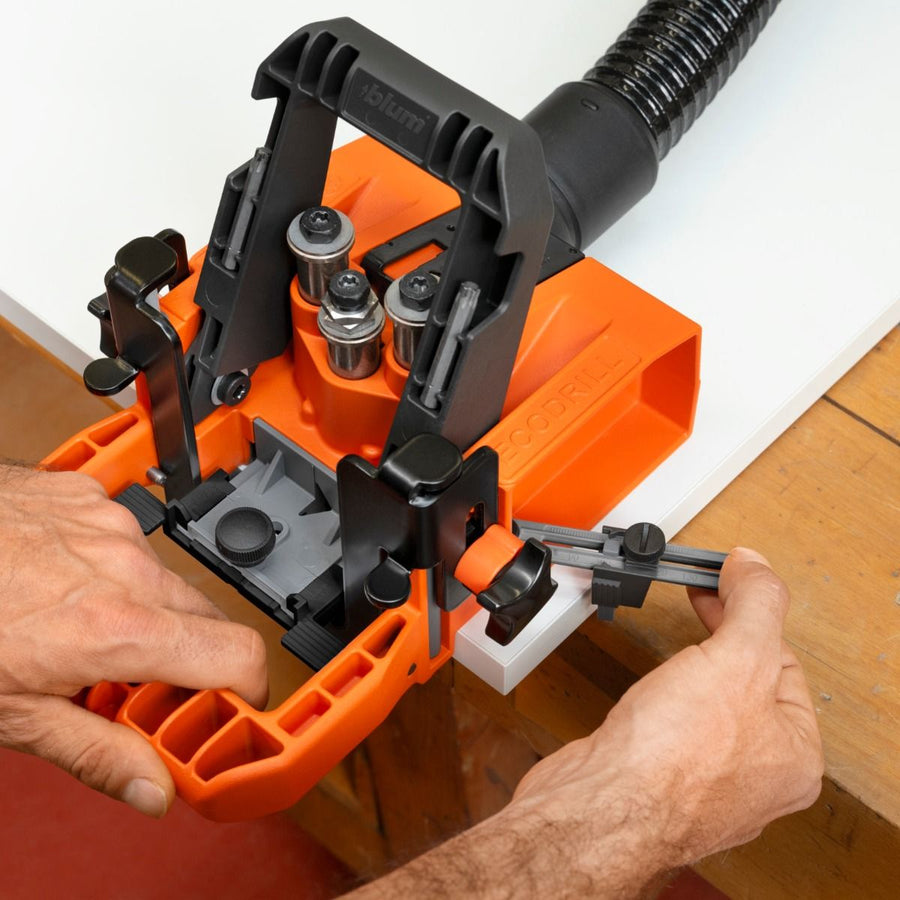

• Now with extraction coupling for clearing wood shavings
• Integrated side stops ranging from 80 - 130mm
• Includes jig for both in-line & cruciform mounting plate installation
• Driven by hand drill - drill bit included
• Drilling distance from 2 to 8mm
• Centre line marker
• Robust and compact design
• Solid central quick release handle
Assembly possibilities
• CLIP top BLUMOTION, CLIP top, CLIP and MODUL hinge systems
• CLIP, MODUL, in-line & cruciform mounting plate options
• AVENTOS HF - front hinge & mounting plate positions
What's Included

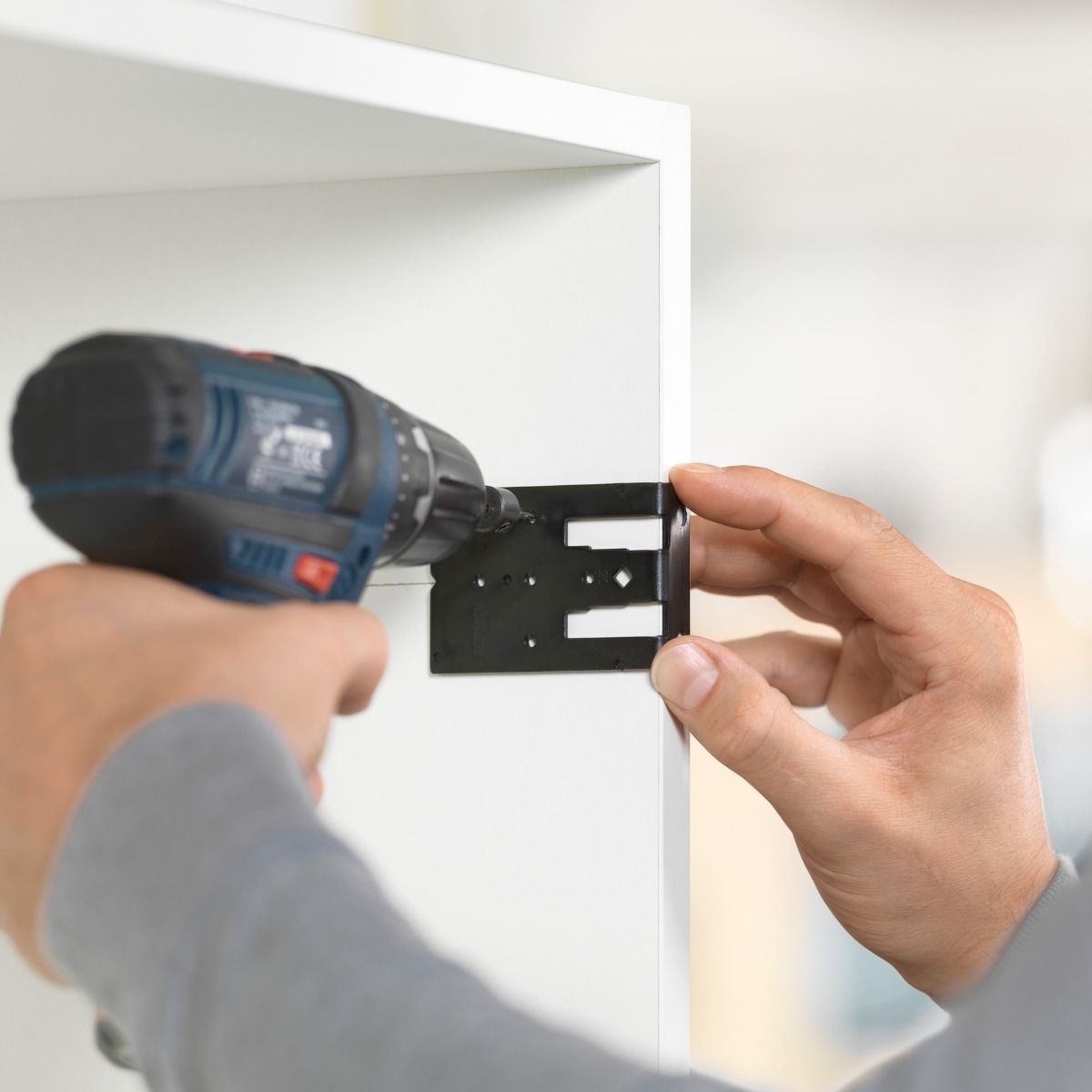

1 x BLUM ECODRILL, 1 x Ø35mm drill bit, 2 x Ø8mm drill bits, 1 x 65.5300 mounting plate template & 2 x torx drill bits - ready to go out of the box.
| Brand | BLUM |
|---|---|
| Colour | Orange & Black |
| Depth | 250mm |
| Height | 205mm |
| Material | Steel |
| Max. Material Thickness | 40mm |
| Model | ECODRILL |
| Requires | Power Drill |
| Version | with extraction connection & side stops |
| Width | 205mm |
