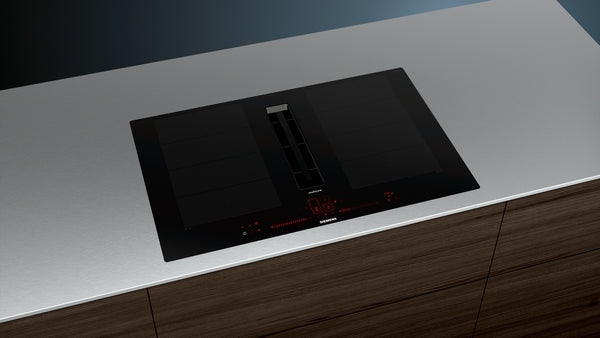

Siemens iQ700 Induction Hob With Integrated Extraction 80cm Flush Mount EX807LX57E
Design hob with a fully integrated, totally flush air-inlet.
The hob that adjusts to your cookware.
With flexInduction, the flexible cooking zone automatically extends to accommodate extra-large cookware (up to 24 cm) in diameter. If one zone is not big enough for your cookware, your hob takes control and activates more inductors for even heating. It’s also an excellent option for using teppanyakis or griddle plates up to 40 cm long.
Touch and slide for total control.
Neatly arranged dual light sliders make it simple to select cooking zones on each side of your cooktop. Just tap and slide to control your hob. And when the hob is switched off, the interface disappears to leave you with a sleek and minimalist black glass surface.
Automatic freshness for your kitchen.
Never too high or low, and never louder than necessary. The climateControl Sensor measures steam intensity and detects cooking fumes to optimise the air circulation automatically. Keep the air in your kitchen fresh and your mind free to focus on the cooking.
Ultra-easy cleaning.
With inductionAir, there’s a triple overflow protection system that helps prevents liquids or other spills from entering the hob. If anything does spill into the unit, you can simply pop the dishwasher-safe grease filters into your dishwasher for easy cleaning.
Information about your hob, no matter where you are - Home Connect App (Android and iOS).
The world of technological innovation constantly progresses. Step by step, more appliances become more connected and intelligent. With Wi-Fi-enabled Siemens home appliances and Home Connect, this development finally makes its way into your home. The synergy of Wi-Fi-enabled appliances, intelligent software and an intuitive app offers a wide range of options. While some ease the workload and some open up completely new possibilities, all of them make everyday life as efficient and comfortable as never before. And you can spend more time on the things you like. For a life less ordinary.
Total control for frying.
fryingSensor Plus helps make sure every one of your crêpes will be deliciously golden, from first to last. It alerts you when the pan has reached the right temperature, then maintains that exact heat level for as long as you’re cooking. Your creations stay free of scorching, and you can stay focused on your guests.
Shift the heat by shifting the pan: powerMove.
powerMove Plus lets you separate your cooktop into three different heating zones. From roasting at highest temperatures in the back to keeping meals warm in the front – the individual zones are activated by simply placing the cookware on them.
Remembers the heat settings for individual pans: flexMotion.
flexMotion remembers the heat settings for individual pans, so you can move them freely across the hob. The temperature on the new cooking zone automatically adapts. Spend less time adjusting the hob controls, and more time cooking.
More power when you need it.
Use powerBoost to increase the power of an induction zone by up to 50%. That could save you up to 35% of the time it usually takes to heat up pots. Spend less time waiting and more time stirring, seasoning and serving your brilliant meals.
Hazards are eliminated: the childproof lock.
With the childproof lock button, you can quickly and easily protect each induction hob against unauthorised operation. The childproof lock blocks all the hob's functions at the touch of a button. Locking is cleared by pressing the button again and holding down for a few seconds.
Let our professionals analyse appliance problems via remote access - Remote diagnostics.
In case there is any problem with your hob, Home Connect offers the convenient possibility of remotely diagnosing it. With your permission the Siemens customer support accesses the appliance online to detect the source of error. If the malfunction can’t be solved right away and a personal visit from our customer service is necessary, the professional Siemens technician will arrive perfectly prepared and with the required spare parts.
Remote monitoring
Thanks to Home Connect, peace of mind is just a click away: monitor your appliance’s settings and receive push notifications when your selected program is finished.
Product Specifications
| studioLine Flush Fitting |
| Siemens studioLine exclusive zone printing: minimalistic design thanks to dark colour of zone printing. |
| 80 cm: space for 4 pots or pans. |
| 2 flexInduction zones: use cookware of any shape or size anywhere within the 40cm long zone. |
| Cooking zone front left: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) |
| Cooking zone rear left: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) |
| Cooking zone rear right: 200 mm, 240 mm , 2.2 KW (max power 3.7 KW) |
| Cooking zone front right: 200 mm, 240 mm, 2.2 KW (max. power 3.7 KW) |

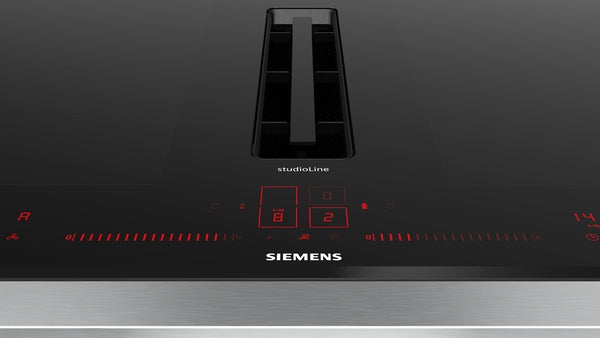

| Dual lightSlider: directly control the power on the two illuminated touch bars (invisible when switched off). |
| 17 power levels: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels). |
| Keep warm function: keep dishes warm at preset low power level. |
| Timer for all zones : switches off the cooking zone at the end of the time set (e.g. for boiled eggs). |
| Acoustic signal : an alarm sounds at the end of the time set (e.g. for pasta). |
| Count up timer : shows how much time has passed since starting the timer (e.g. for potatoes). |
| Power boost setting : boil water faster thanks to 50% more energy than at the highest standard level. |
| panBoost: heat up pans faster than at the highest standard level while protecting the pan coating. |
| Cooking zones will be automatically joined or separated based on the shape and size of the cookware placed. |
| powerMove plus: increase or decrease the power level simply by moving the pot forwards or backwards. |
| flexMotion: when moving a pot to a different cooking zone, this feature transfers all previous settings to the new zone at the touch of a button. |
| quickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off). |
| reStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds. |
| fryingSensor plus with 5 temperature settings: prevents overcooking with the automatic temperature regulation of the integrated sensor. |
| Dish assistant: easily find the right temperature setting for a certain dish via the home connect app. |
| Home Connect - enables Remote Monitoring no matter where you are, with the easy-to-use Home Connect App: check if the hob is switched off even when not at home, and find recipes or additional functions in the Home Connect app. |
| 2 stage residual heat indicators: indicates which cooking zones are still hot or warm. |
| Control panel lock: prevent unintended activation of the hob. |
| Control panel pause: wipe overboiled liquids without unintentionally changing settings (blocking all touch buttons for 30 seconds). |
| Main on/off switch: switch off all cooking zones at the touch of a button. |
| Automatic safety switch off: for safety reasons, heating stops after a preset time if not used (possible to customise). |
| Energy Consumption Display: shows the electricity consumption of the last cooking process. |
| Dimensions of the product (HxWxD mm): 227 x 792 x 512 |

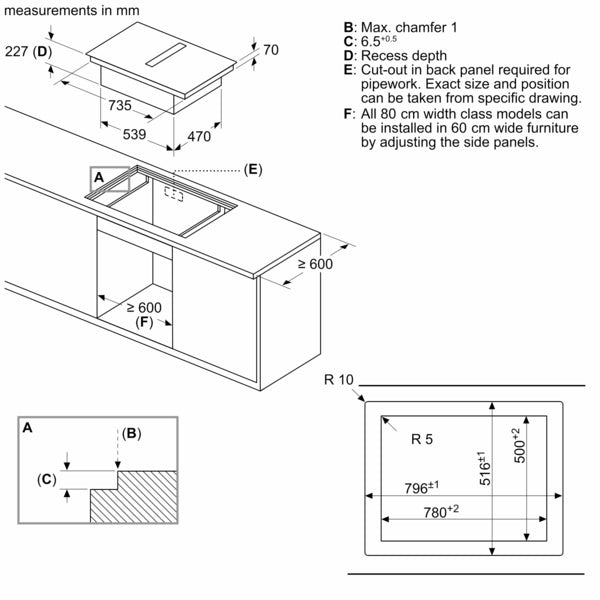

| Required niche size for installation (HxWxD mm): 227 x 796 x 516 |
| Min. worktop thickness: 16 mm |
| Connected load: 7.4 KW |
| Connection current management (20, 16, 13, 10 Amps options): limit the maximum power if needed (depends on fuse protection of electric installation). |
| Power cord: 1.1 m, Cable included in packaging |
| For installation in stone, granitic or synthetic worktops. Other worktop materials require a suitability check with the worktop manufacturer. |
| Suitable for installation into a 60 cm base cabinet |
| Induction cooktop with fully integrated high-performance downdraft extractor. |
| Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. Accessories for other installation options are available, details in the planning notes. |

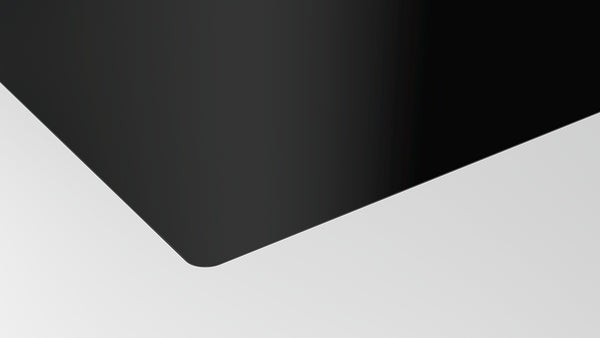

| Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware. |
| Ventilation system with 17 electronically controlled fan power levels and 2 Boost-/Intensive fan power levels (with automatic revert) via Dual lightSlider user interface. Sensor-based, smart, fully automatic mode of ventilation system: |
| - Automatic switch-on of ventilation system when a cooking zone is used. |
| - Sensor-based and cooktop-based, fully-automatic adjustment of power levels via advanced algorithm for maximum convenience. |
| - 3 possible sensitivity modes of algorithm for maximum convenience (Low-noise oriented, balanced, performance-oriented). |
| - Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually). |
| - Manual control possible via Dual lightSlider. |
| High-performance, low-noise blower with energy-effcienct BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimized interieur with enclosed, non-visible blower. Highly pressuredrop resistant even with longer and more complex ductings. |
| Easy-to-detach and easy-to-clean grease filter and liquid collector unit: |
| - Convenient one-hand removal of unit via floating glass ceramics handle. |
| - Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %. |
| - All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant. |
| - (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate. |
| - Powerful drainage system for spillages that exceed 200ml of liquids. |
| - Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below. |
| - Overall capturing capacity of 900ml (200ml + 700ml). |
| - Watertight blower system. |
| Ventilation system performance: |
| - Extraction performance in ducted extraction (according to EN 61591): min. normal setting 154 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h . |
| - Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 132 m3/h , max. normal setting 499 m3/h , max. Boost-/Intensive setting 595 m3/h. |
| - Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 42 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW. |
| - Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 41 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW. |
| - Grease filter efficiency (according to EN 61591) 94 %. |
| Consumption data and energy efficiency (according to Regulation (EU) No 65/2014): |
| - Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D). |
| - Fluid Dynamic Efficiency: A . |
| - Average energy consumption: 57 . |
| - Grease filtration effciency class: B . |
| - Noise min. normal setting & max. normal setting: 42 dB & 69 dB . |
| For recirculation configuration: 2 x 2 battery of directly integrated, high-performance cleanAir odor filters. |
| - Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). |
| - Large scale filter surface with high odour reduction capabilities. |
| - Lifetime of 360 hours of cooking (non-regenerative). |
| - Low-noise filters with optimised psycho-acoustics. |
| - Easy-to-access and easy-to-remove from above. |
| - Saturation indications for cleanAir odour filter via user interface notification and via the Home Connect app with a convenient replenishment re-order option (replenishment cleanAir filter set HZ9VRCR0). |
| For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics. |

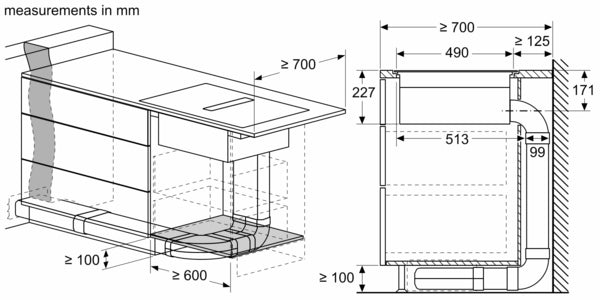

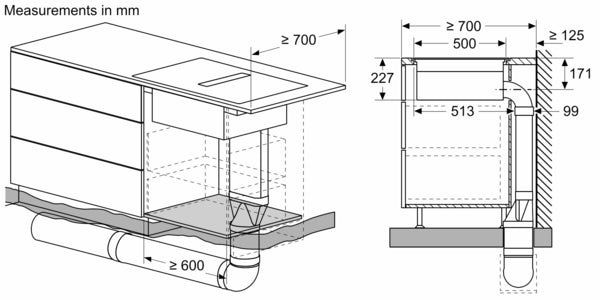

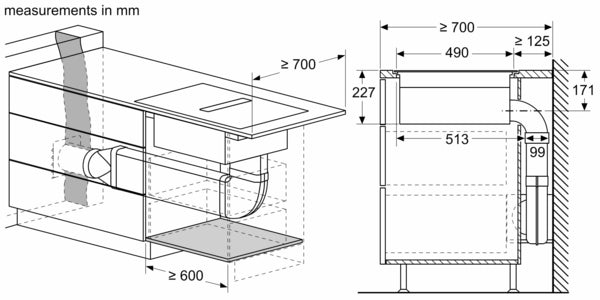

| Suitable for ducted or recirculated extraction installations in 4 different options (unducted, partly and fully ducted recirculation or ducted extraction). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. The included accessories allow easy and quick installations and can be planned in all worktop depths ≥60cm. For other types of installation, one of the following accessory kits is recommended: |

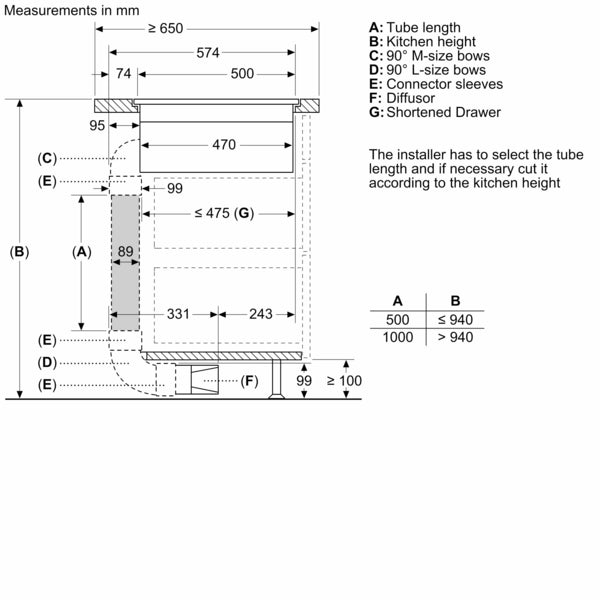

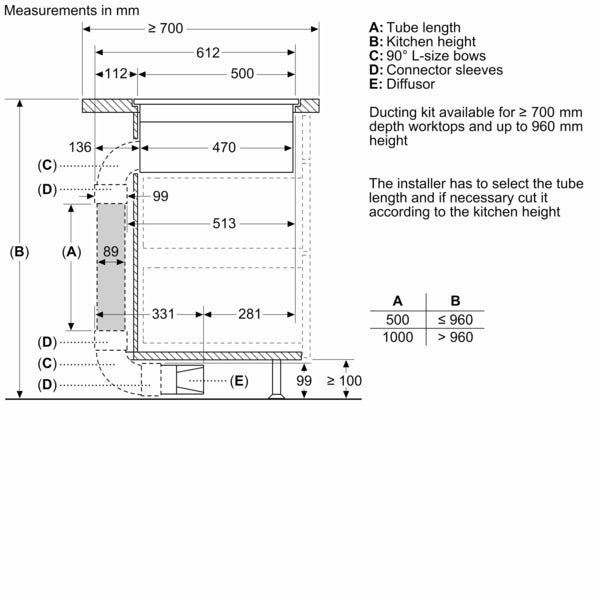

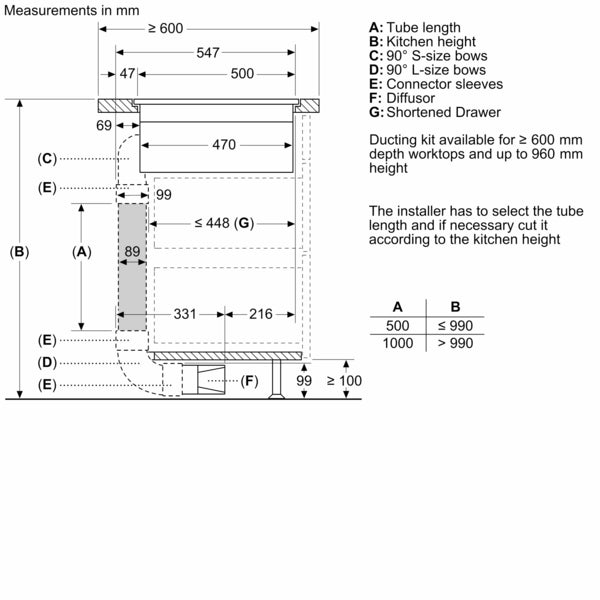

| HZ9VDKR1 for partly-ducted recirculation in worktops of ≥60cm depth with max. worktop height of 960 mm. HZ9VDKR0 for partly-ducted recirculation in worktops of ≥70cm depth with max. worktop height of 960 mm. |
| HZ9VDKE1 as starter kit for ducted extraction in worktops of ≥60cm depth. |
| To complete the fully ducted extraction or to do any other individual recirculation planning different ducting accessories are available. |
| Planning suggestions: |

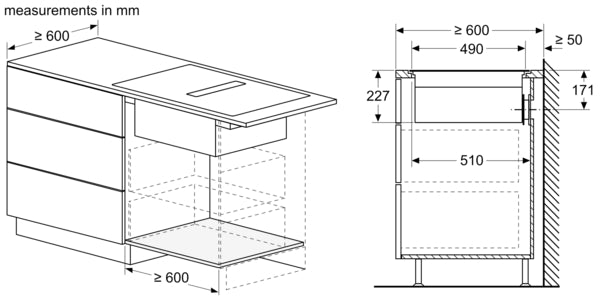

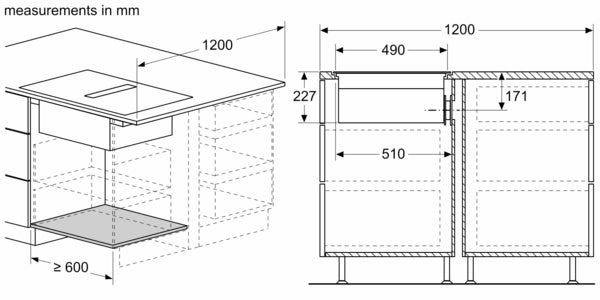

| - Installation is possible in island as well as wall oriented configurations. |
| The product and its accessories comply with the Needle Flame Test (according to IEC 60695-11-5) and the V2 flammability class (according to UL94). |
| - The max. immersion depth is 227 mm below worktop surface. |
| - The appliance must be freely accessible from below (i.e. for accessing the lower liquid safety collector). |
| - No false floor is necessary below the cooktop with integrated downdraft ventilation system. The drawers and/or shelves in the floor unit must be removable. The backpanel of the floor unit can be kept - only a cut-out for the air outlet is needed (position and size can be taken from the installation instructions). |

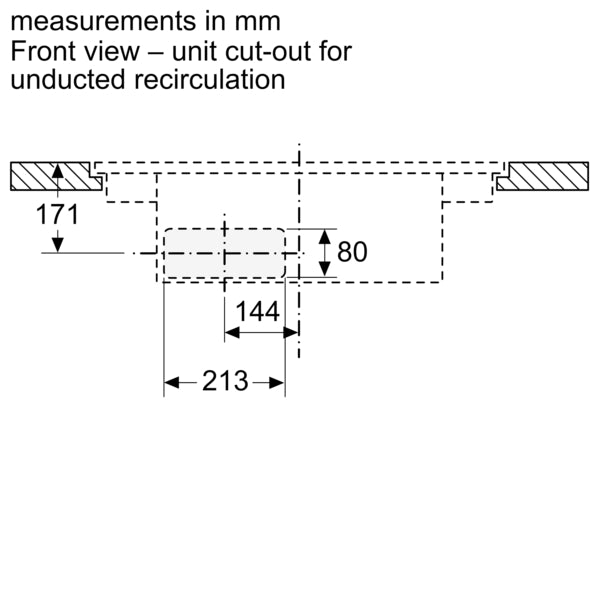

| An installation with unducted recirculation requires a vertical aperture of min. 25mm behind the backpanel of the furniture. Suggested for ideal performance are 50mm. |
| The minimum worktop thickness is 16 mm for top mounted and flush installed appliances with the standard installation system. Installation in even thinner worktops is also possible with the spare part: content 626792. |
| - The overall appliance weight is 26kg - the bearing capacity and stability, in the case of very thin worktops in particular, must be supported using suitable substructures. The overall appliance weight and the worktop manufacturer's structural integrity specifications are to be taken into account. |
| - For partly ducted and unducted recirculation extraction installations, a return-flow aperture of ≥400cm² is to be respected in the plinth area. The aperture can be realized via outlet grids, lamella grids or subtly shortened plinths depending on the assortment of the kitchen furniture manufacturer. |

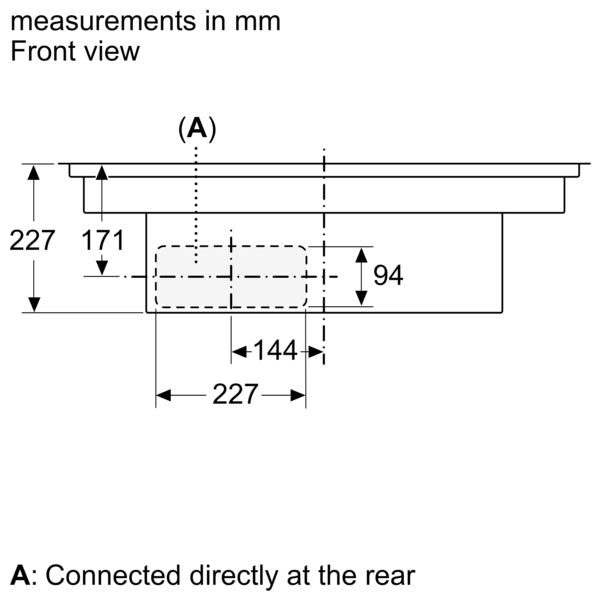

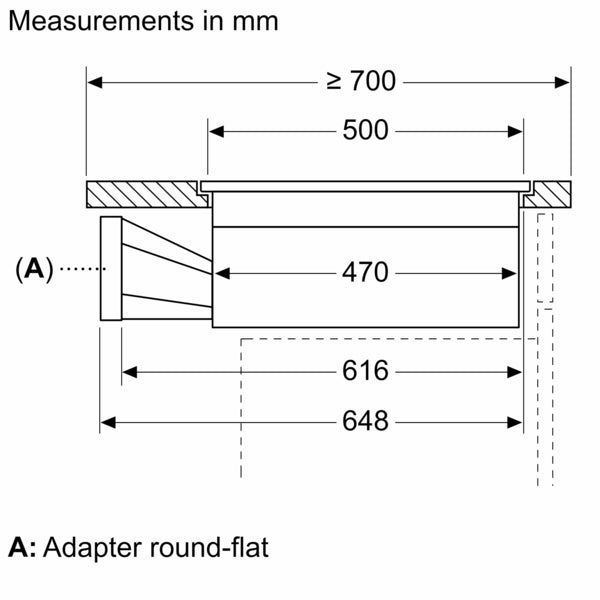

| - The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150). |
| - The pressuredrop resistant blower allows longer and more complex ductings up to 8m with three 90° bows while keeping sufficient performance. |
| - When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch. This is not required for configurations in recirculated extraction. |
| - In ducted extraction configuration a one-way flap (or backflow trap) with a maximum opening pressure of 65Pa should be installed. |
