Naber 4051004 PRIME flow P-UVB 150 universal connector, light grey

Name: Naber 4051004 PRIME flow P-UVB 150 universal connector, light grey
Brand: Naber
SKU: 4051004
Price: 53.99 GBP
Availability: InStock

£53.99

Secure online shopping

Frequently Asked Questions

1) Why choose Airforce?

Because we firmly believe that the design of each product must aim at the perfect synthesis of aesthetics and functionality, of technology and efficiency.

Thanks to its highly specialized people, Airforce can guarantee a great deal of flexibility and technical support to its customers.

2) How long does the warranty last?

Unless otherwise indicated in the product documentation, our standard warranty lasts 2 years.

3) Which components are covered by the warranty?

All critical components such as controls, motor and lights are covered by the warranty.

All components such as glasses, filters, bulbs, chimneys, removable parts and/or aesthetic defects reported after installation are excluded from the warranty (for any further information please refer to the warranty terms included in the product documentation).

4) Which is the correct way to use the hood?

The hood should always be in use when you are cooking.

To obtain the best performances and efficiency, and be sure to filter all the air, we suggest you to turn on the hood 5/10 minutes before start cooking, and switch off 10/15 minutes after you stop cooking.

5) Which products should I use to clean the hood/hob?

For cleaning use a damp cloth with denatured alcohol or neutral liquid detergents.

Do not use abrasive and/or aggressive products (for any further information please refer to the user manual).

6) How long does the grease filter last? And how can I clean it?

All our grease filters are washable. Cleaning the grease filters is more or less necessary depending on the type of cooking and how often you use the hood. However the grease filter should be cleaned at least once a month, with non-aggressive detergents, either manually or in a dishwasher at low temperatures and short-cycle. Most of our products with electronic control are equipped with a grease filter cleaning warning.

7) Which is the correct distance between the hood and the hob?

The hood must have a minimum distance of 65 cm from the hob, unless otherwise indicated by the manufacturer. If the hob installation instructions specify a greater distance, you must take this into account.

Always read the user manuals before installation to check the correct distance between the products.

8) When should I contact technical support?

Whenever there is a malfunction of critical components (such as power cord, motor, controls) or heavy aesthetic components are damaged (such as chimneys, glasses, etc.), they must be repaired or replaced immediately.

Every inspection, repair, or replacement must be done only by qualified personnel or official technical service, regardless of whether the product is still covered by warranty or not, in order to prevent any risk.

Any intervention by staff other than the official technical service will automatically invalidate any residual warranty on the product.

9) What is Integra System

The Integra System hoods can be controlled by any of the Integra hobs - So there is no need to reach up to the hood, as it can be fully controlled on the hob.

The Details

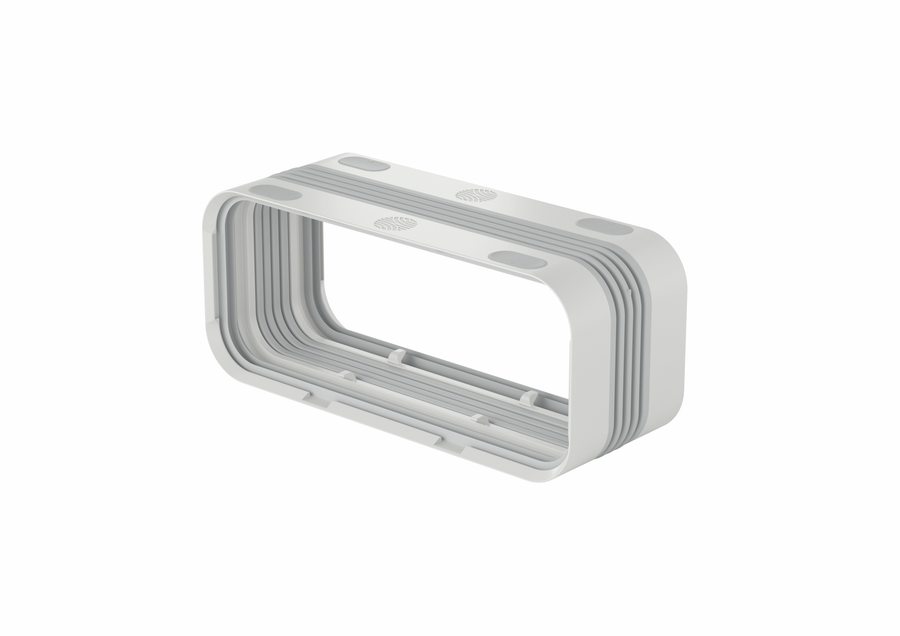

PRIME flow P-UVB 150 universal connector, light grey

The COMPAIR^® PRIME Flow P-UVB 150 universal connector serves as a flexible connecting element for flat duct pipes and flat duct bends. It is part of the innovative COMPAIR^® Flow system, which enables complex recirculation and exhaust solutions with high efficiency. The ventilation moulding consists of hard and soft components and is manufactured in one piece, which noticeably extends its service life. Other highlights include two integrated lip seals for an airtight assembly of the individual elements within the system assembly. At least the requirements of tightness class ATC3 according to DIN EN 16798 are fulfilled. The compensator, which is also integrated, enables flexible assembly, opening up a vertical and horizontal leeway of 0°-15°. External grip points improve the feel and at the same time ensure decoupling of structure-borne sound. The moulding has a length of 85 mm.

— flexible connector for flat duct pipes and flat duct pipe bends
— manufactured in one piece from soft and hard components
— 2-lip seal for airtight installation, fulfils at least tightness class ATC3 according to DIN EN 16798 in system construction
— outer grip points for better handling and decoupling of structure-borne sound
— compensator for flexible installation, horizontal/ vertical 0°–15°
— length 85 mm

Article type: Connecting element

Brand: PRIME flow

Colour: light grey

Further: outer grip points for better handling and decoupling of structure-borne sound

Mounting/Fixing: can be installed horizontally and vertically

Note: 2-lip seal for airtight installation, fulfils at least tightness class ATC3 according to DIN EN 16798 in system construction, manufactured in one piece from soft and hard components

Output drive:

angular

Properties:

flexible (horizontal/ vertical 0°–15°)

Suitable for:

for flat duct pipes and flat duct pipe bends

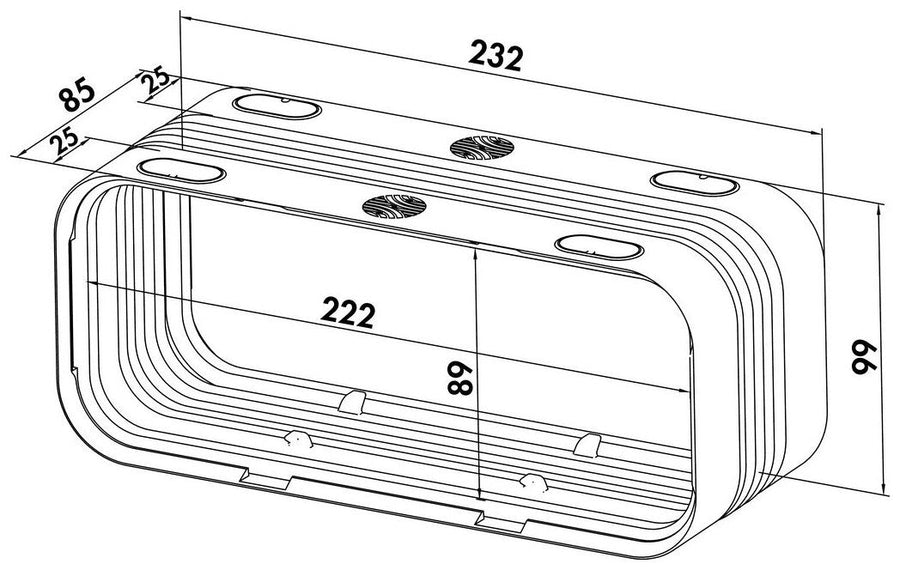

System dimension:

150

Depth:

232 mm

Width:

85 mm
